Lorem ipsum dolor sit amet consectetur adipisicing elit. Minima quam aperiam ullam.
(Contact: +8801792223444 for price)
Product descriptions

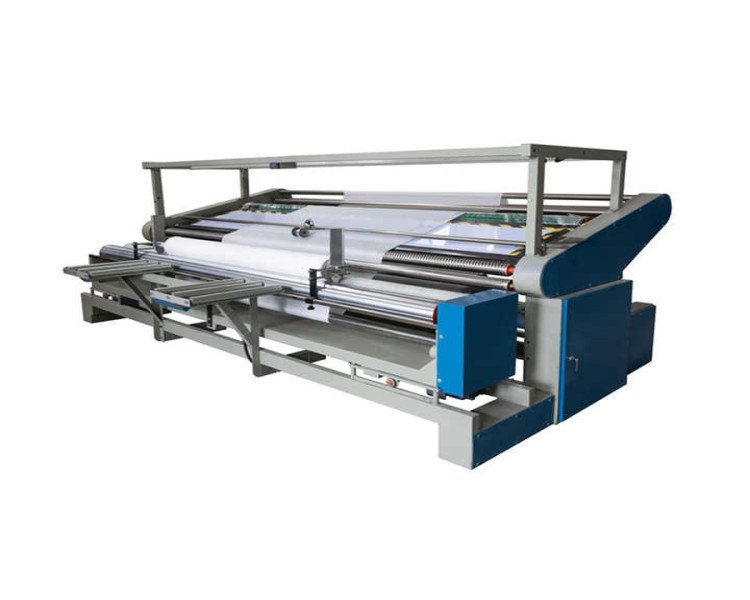

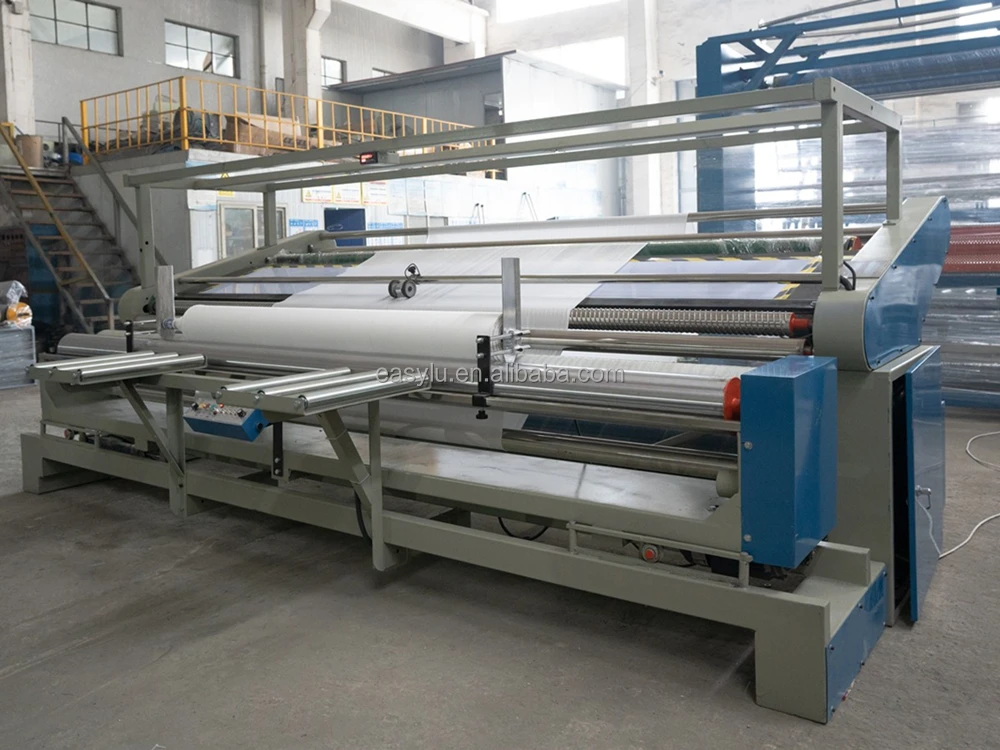

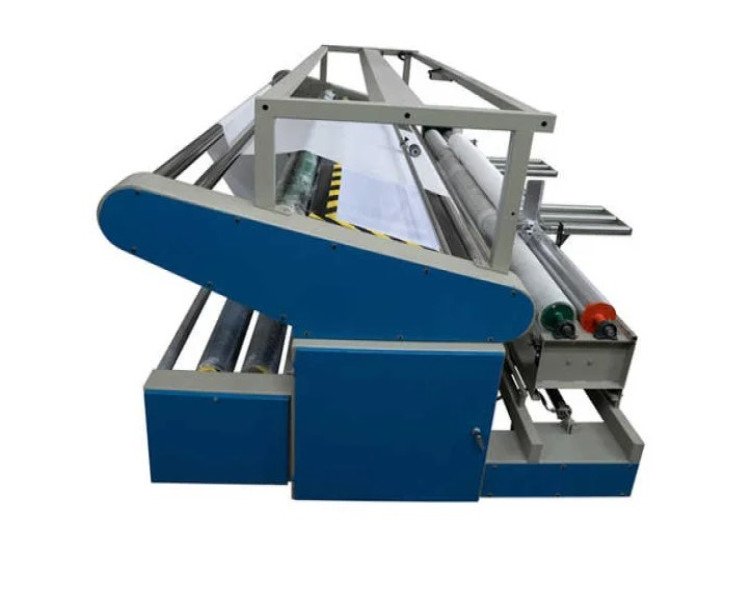

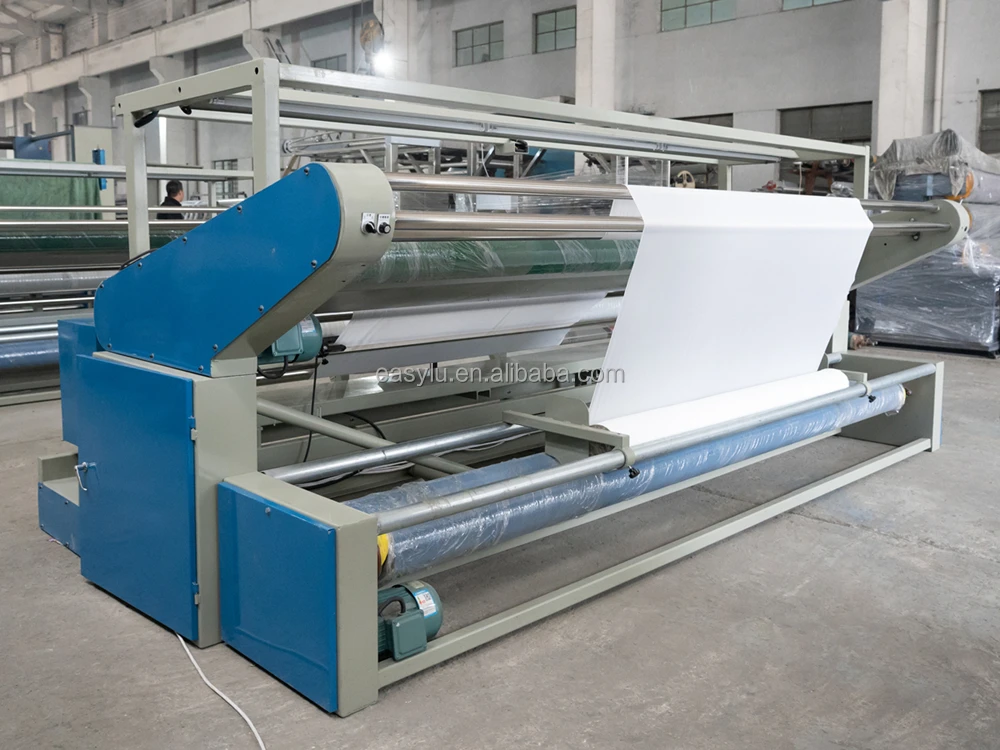

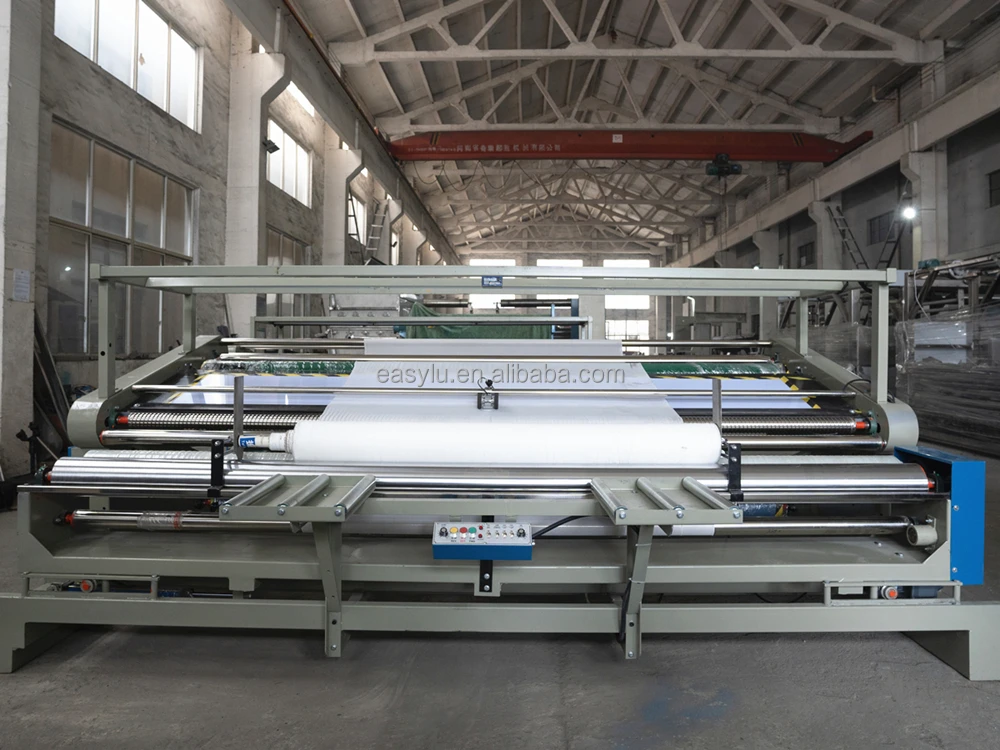

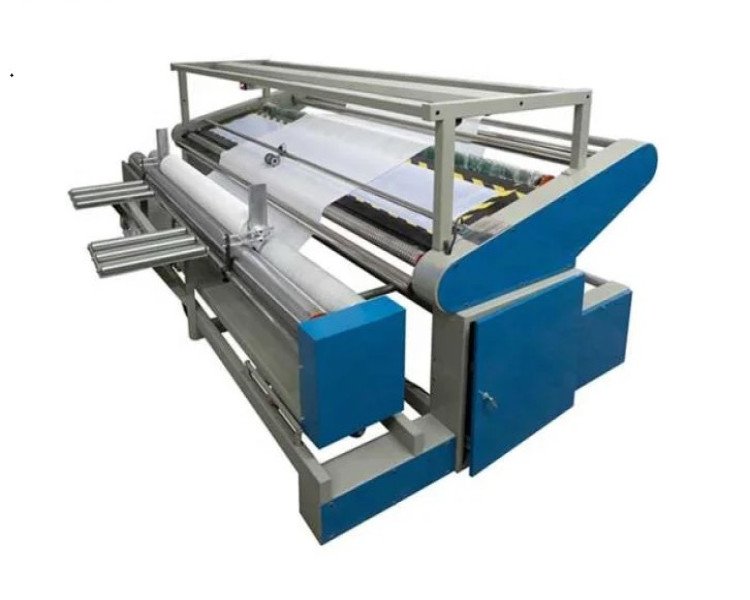

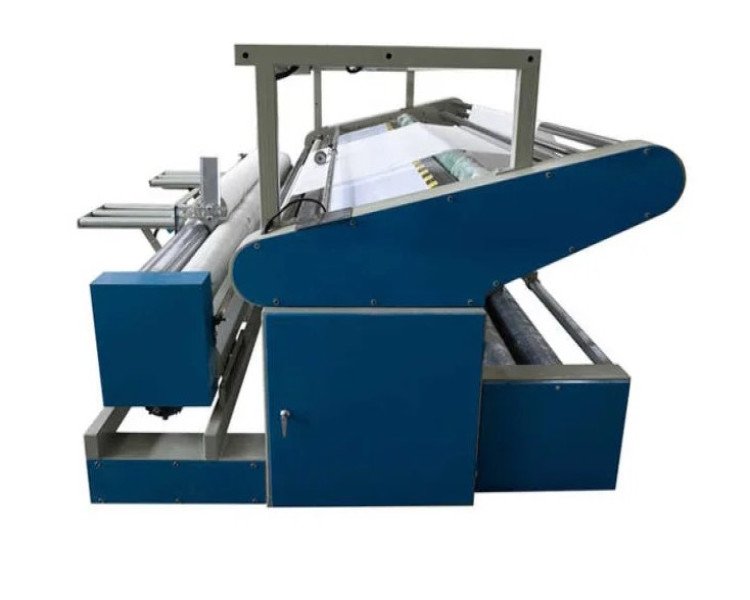

Product Display
Product Parameters
Product Features 1. It is suitable for rolling and inspecting fabric, such as woven fabric, knitted fabric, warp knitting, synthetic leather, non-woven fabric, etc. 2. Tension is controlled by dual frequency converter, and can be adjusted discretionarily. 3. Adopt Taiwan hydraulic system and infrared ray photoelectric automatic edge alignment. 4. Use the domestic most advanced electronic measure length control instrument. 5. Optional parts can be assembled: ① Electronic scale ② ERP defect acquisition system and printing equipment ③ Metal locator ④ Automatic misalignment function ⑤ Automatic stop if there is no fabric ⑥ Coiling differential gear ⑦ Color code edge alignment ⑧ Computer connector ⑨ Automatic cut-off knife
Technical Parameters 1. Suitable width: 1800mm~3600mm 2. Coiling diameter: ≤400mm 3. The speed of rolling and inspecting: 0~100m/min 4. Deviation rectifier type: hydraulic 5. Main motor power: 0.75/0.4~2.2/1.5(KW) 6. Total power: 2KW~4KW 7. Tension control: Dual frequency converter

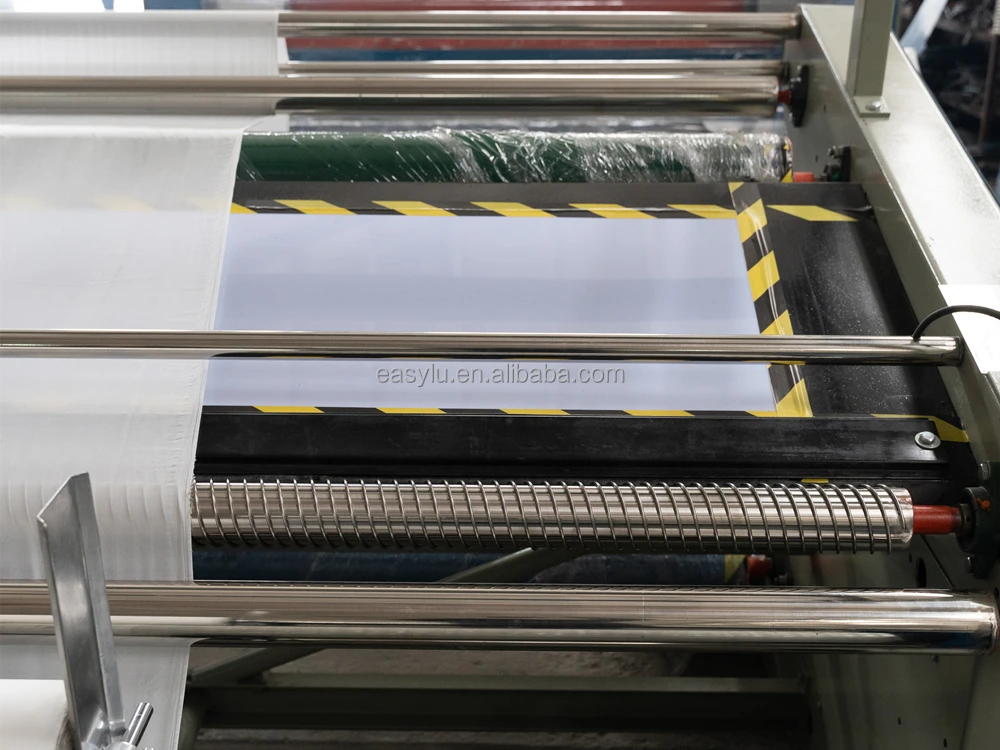

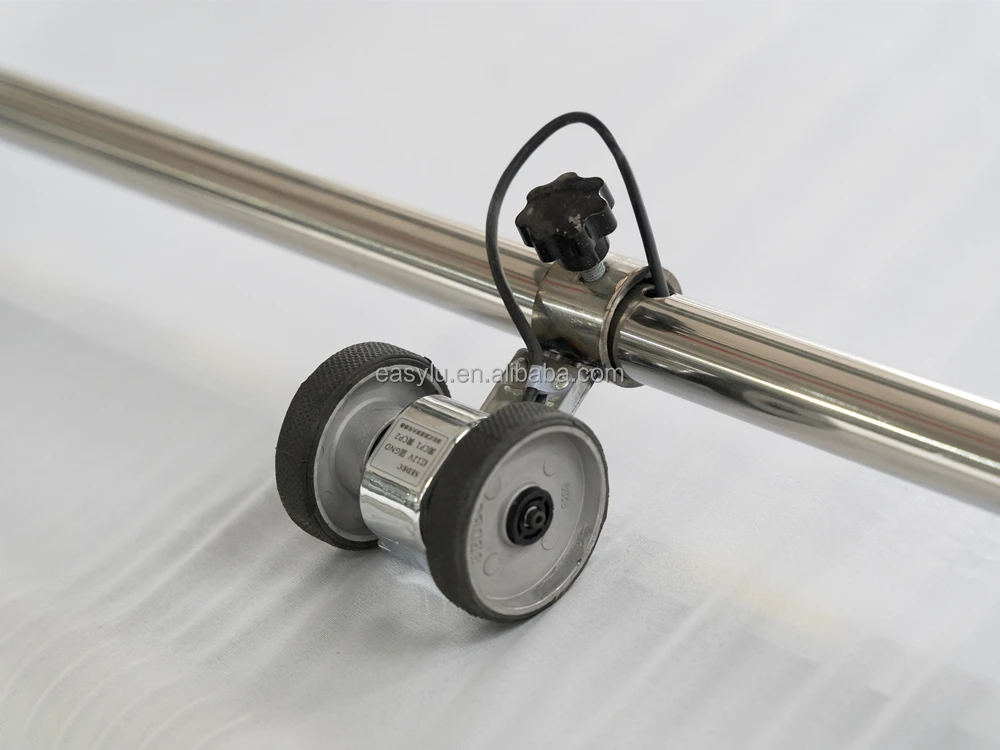

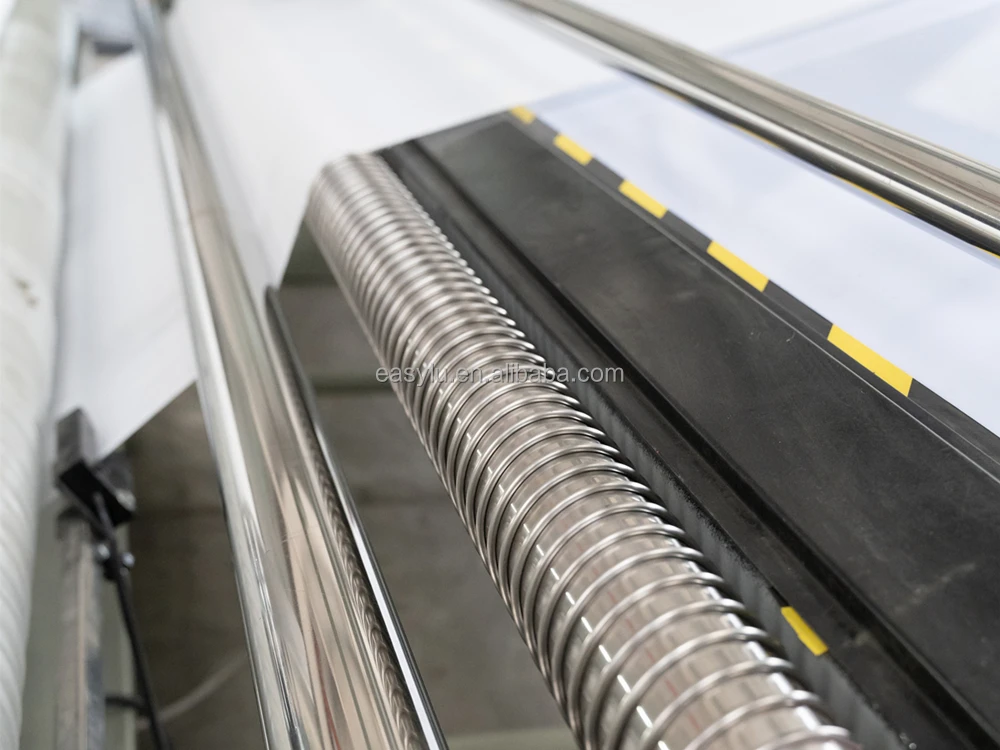

Details Images

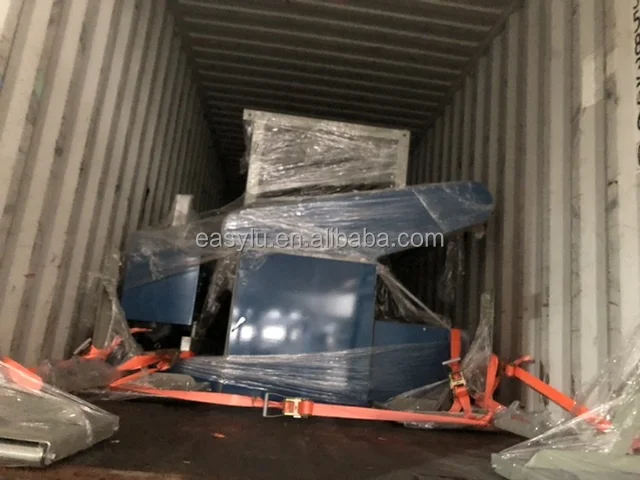

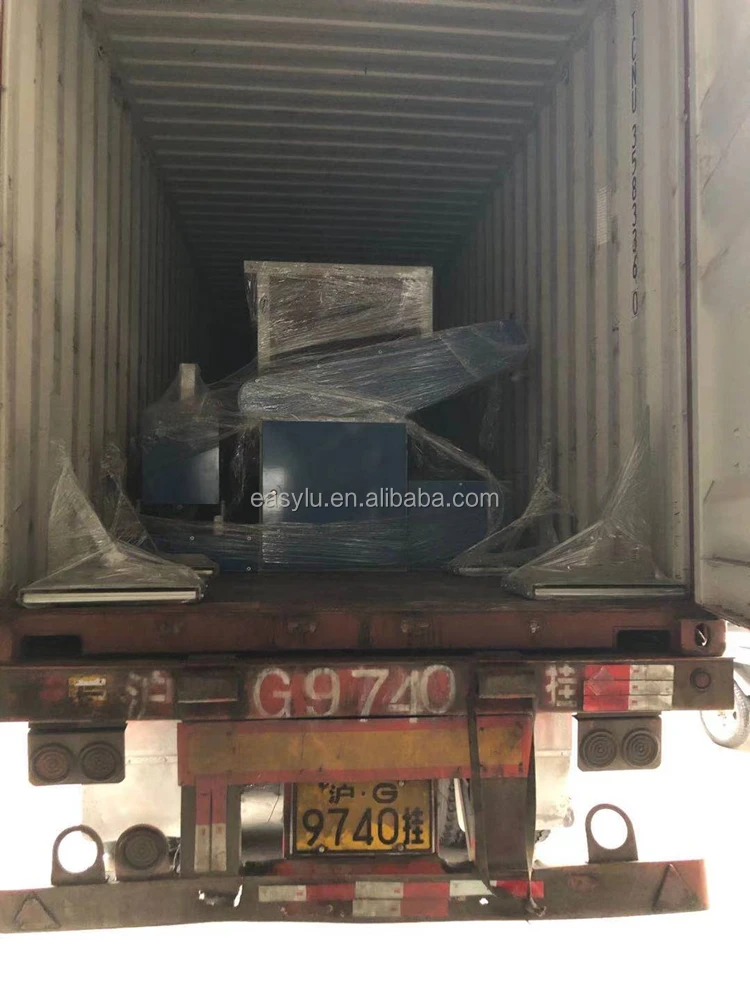

Shipping and Packing
