Smart 5G 20KW 15KW wind mills turbine power generator system production 2kw 3KW 5KW 10KW Wind Power Generation System product

RFQ

VENDOR : Tizaraa In-house

AVAILABILITY : In Stock

(Contact: +8801792223444 for price)

Product Description

Horizontal-axis wind turbine

Blade form

Propeller

Blade number

3 pieces

Balde material

Glass fibre reinforced plastic

Type of generator

Permanent-magnet 3 phase AC

Type of tower

Guy wire or free standing

Power

5kW

Blade diameter

5.2m

Rated rotor speed

200r/min

Rated speed

8m/s

Rated power

5kW

Max power

7kW

Output voltage

48/96/220V

Start up wind speed

3m/s

Work speed

3-30m/s

Security wind speed

50m/s

High of tower

6/8/9/12m

Top quality except tower

310kg

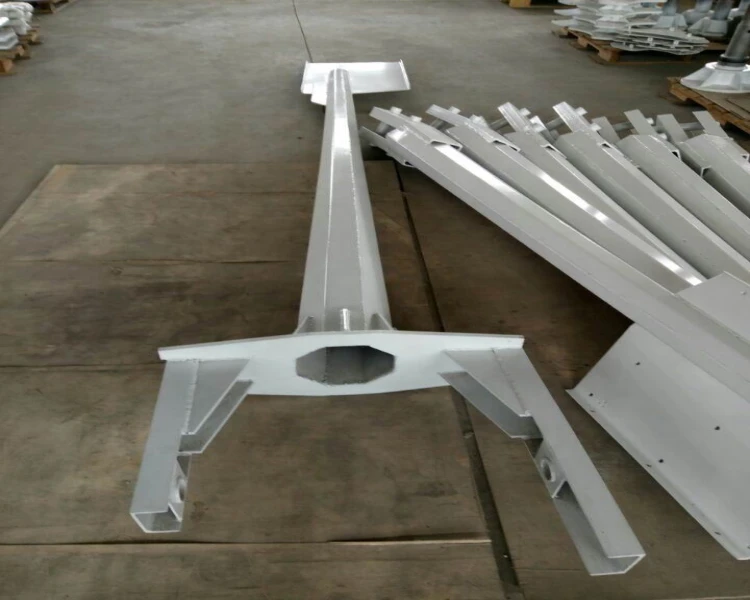

Tower Steel tube model

φ250mm

Speed regulation

Leaning tail + electric brake

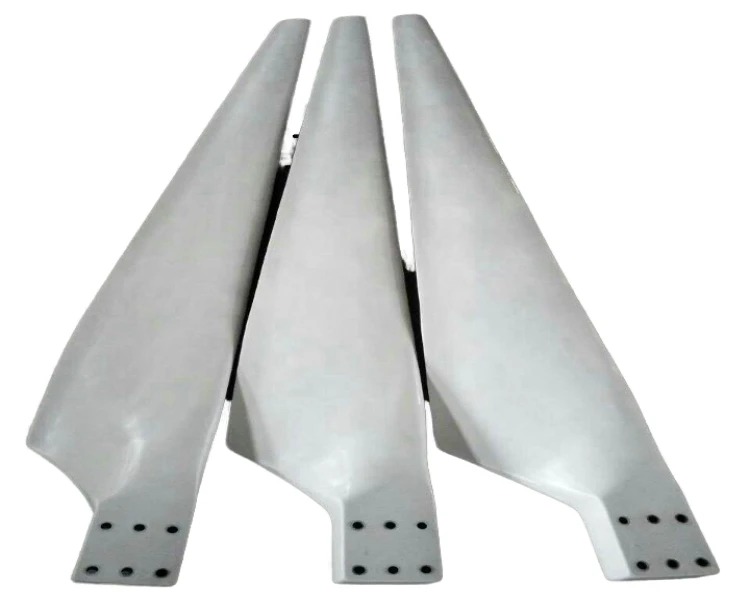

1. The wind wheel:Using three blades,laminar flow airfoil,high lift-drag and excellent performance.The blades use glass fiber reinforced plastic leaf fiber,with a large damping,good dynamic feature,and good toughness.Wind wheel and generator with flexible connections run smoothly without vibration or noise.

2. Generator:The overload strong bearing,long-lasting lubrication without maintenance.The rotor is made of permanent magnet (NdFeB),so it generates electricity when the rotating impeller drives generator rotor rotating.The wind is different from
ordinary electric motor,which is the ultra-low-speed motor,100 --- 400 per minute to switch that is able to meet the design power (depending on model),while such a low speed of the motor is unable to pronounce with ordinary electricity.





3. Switch controller:It is connected generators, batteries or network (if necessary),and electric-powered equipment,electrical installations.The system with different voltage sockets is user-friendly;rectifier that is issued by the three-phase AC generator changing into direct current. On grid and off grid style is optional .



4. Inverter:Wind generators are direct current through the battery output can only be used for the direct current electrical use,using AC appliances must be equipped with the DC into AC inverter,inverter can change from electrical power storing of battery to alternating current suitable for the standard of customers,and then provide utilization for electricity equipment.On grid an off grid is optional .

A: Grid TIE System

B: Off Grid System

c: hybrid wind solar system

New Arrivial

High efficiency complete kit 10kw solar power generator energy system for farm/off-grid solar system buy for home

BDT 581,524.52 - BDT 593,272.49 / set

1 set

Hot! All in one off grid hybrid solar wind turbine system 48V 96V 220V 380V 5kw 10kw 15kw 20kW also called solar wind system

BDT 58,739.85 - BDT 352,439.10 / set

1 set

Low RPM 30KW 50kw hydro generator also called 20kw hydro turbine generator, 10KW power generator

BDT 117,479.70 - BDT 293,699.25 / piece

1 piece

Features

1.Low speed permanent magnet generator. 2.Low starting torque,High generating efficiency. 3.Glassfibre high efficiency blades. 4.Neodymium magnets and bearing with high performance. 5.Yaw motor system(optional). 6.Designed for minimal maintenance and easy install. 7.Aerodynamic brake & manul brake.

8.WIFI APP function is optional.

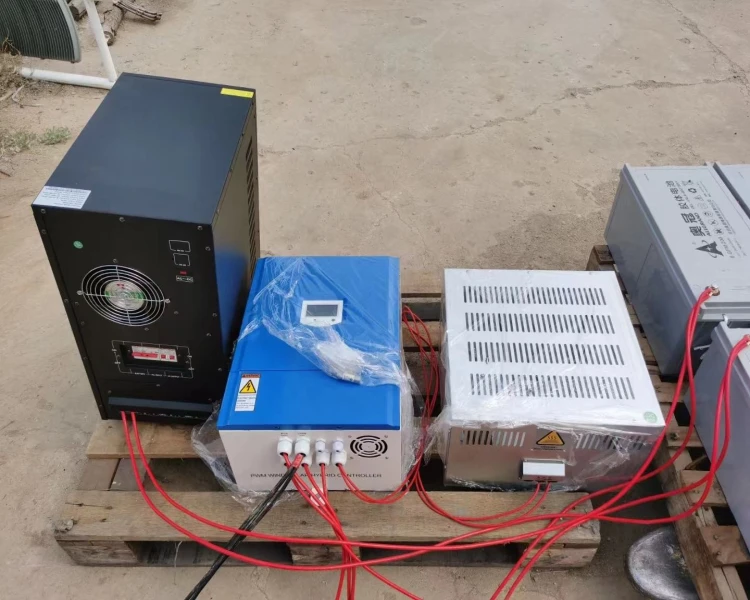

Micro-computer intelligence controller



1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation . 2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection. 3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current. 4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop charging the batteries. 5.the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108% 6.Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.

7.Big LCD LED to show ral data , WIFI APP function is optional.

Pure sine wave inverter



1.Pure sine wave output can drive any household appliances. 2.Use integrated circuit, less wire connection. 3.Adopting micro-processor technology, improving system integration. 4.Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit .protection, over thermal protection, etc. 5.Be able to work in wind power or wind&solar hybrid system. 6.With high efficiency transformer instead of high frequency e-circuit design. 7.Automatic regulate voltage. 8.LCD display operation status. 9.High running stability and reliability. 10.True sine wave form power output. 11.High efficient transformer isolation. 12.Buzzer alarm while over-loading/voltage, high-temperature.

13.Users can adjust the data upon the local real working situation.

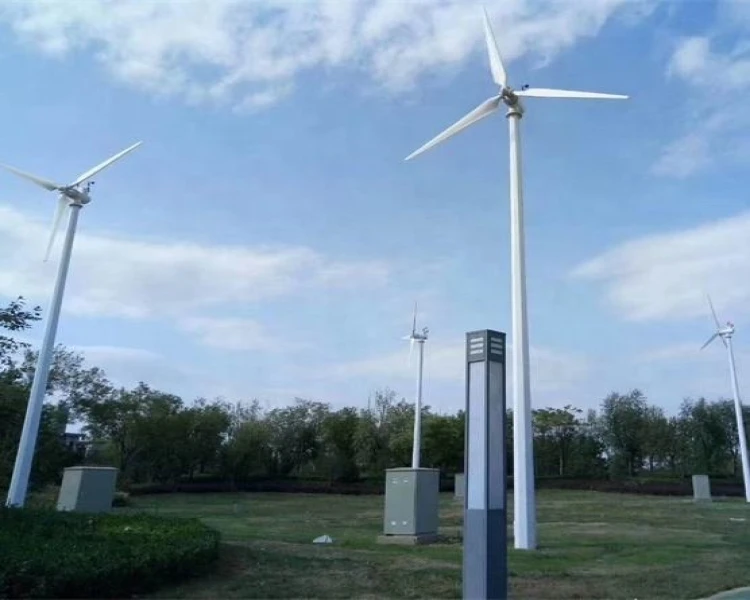

1. Household wind motor

2. Wind turbines for parks

3. Offshore wind turbine

4. Grassland Wind Turbine
