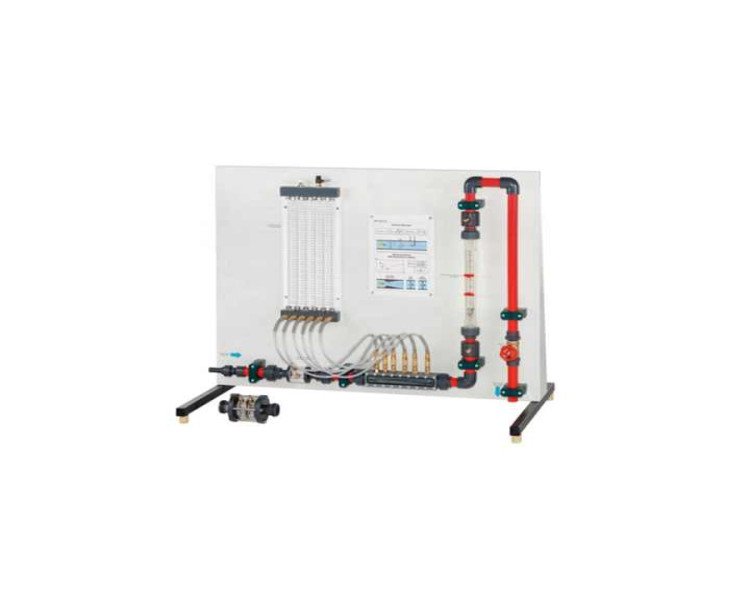

Methods of Flow Measurement: Vocational Training Equipment for Fluid Mechanics Lab

Overview: Flow measurement is a critical aspect of fluid mechanics, used to determine the flow rate or velocity of liquids, gases, and slurries in various systems. Vocational training equipment designed for flow measurement teaches students and professionals how to apply various techniques to measure flow accurately. These methods include mechanical, electrical, and advanced digital technologies, each suited to different fluid types and measurement scenarios.

Types of Flow Measurement Methods:

1. Orifice Plate Flow Measurement:

   • Description: An orifice plate measures the flow rate of a fluid by causing a pressure drop across a hole in the plate. The fluid velocity and pressure difference are used to calculate the flow rate.
   • Application: Commonly used in water treatment, oil pipelines, and chemical industries.
   • Equipment Required:
     • Orifice plates with varying hole sizes
     • Differential pressure sensors
     • Flow rate calculator or data logger

2. Venturi Tube Flow Measurement:

   • Description: The Venturi effect, where the fluid velocity increases and pressure decreases when passing through a constricted area, is used to calculate flow.
   • Application: Widely used in large-scale industrial applications and water flow measurements.
   • Equipment Required:
     • Venturi tubes with different diameters
     • Pressure sensors for upstream and downstream measurements
     • Flow measurement software or manual calculation tools

3. Rotameter (Variable Area Flow Meter):

   • Description: This device consists of a tapered tube with a float inside. As the fluid flows through, the float rises, and the flow rate is determined by the position of the float in the tube.
   • Application: Used for measuring small to medium flow rates in labs, water systems, and HVAC systems.
   • Equipment Required:
     • Rotameter with adjustable flow ranges
     • Scale for float positioning
     • Pressure regulators to control flow

4. Turbine Flow Meter:

   • Description: A turbine inside the meter spins as fluid passes through. The rotational speed is proportional to the flow rate.
   • Application: Ideal for clean, low-viscosity fluids like water, oil, and air.
   • Equipment Required:
     • Turbine flow meter
     • Tachometer or digital sensor for measuring rotations
     • Calibration equipment for accurate measurements

5. Electromagnetic Flow Meter (Mag Flow Meter):

   • Description: Measures the voltage generated by conductive fluids passing through a magnetic field. The voltage is proportional to the flow rate.
   • Application: Commonly used for measuring conductive liquids like water, sewage, and chemicals.
   • Equipment Required:
     • Magnetic field coil
     • Electrodes for voltage measurement
     • Flow processing unit or digital readout

6. Ultrasonic Flow Meter:

   • Description: Uses ultrasonic waves to measure the flow velocity by analyzing the time it takes for the waves to travel through the fluid.
   • Application: Suitable for both liquids and gases, and often used in non-invasive measurement applications.
   • Equipment Required:
     • Ultrasonic transducers
     • Signal processing unit
     • Calibration and testing tools for different flow rates

7. Positive Displacement Flow Meter:

   • Description: This meter captures discrete amounts of fluid in chambers, and the number of chamber fillings correlates to the flow rate.
   • Application: Best for accurate measurement of viscous fluids such as oils, syrups, and fuel.
   • Equipment Required:
     • Rotary or reciprocating pistons or gears
     • Counter for chamber fillings
     • Calibration setup

8. Coriolis Flow Meter:

   • Description: Measures the mass flow rate of a fluid by detecting changes in the vibration of the flow tube as fluid flows through it.
   • Application: Common in industries that require high precision and for measuring high-density fluids.
   • Equipment Required:
     • U-tube Coriolis meter
     • Vibration sensors
     • Data collection system

Vocational Training Equipment for Flow Measurement:

1. Flow Measurement Training Systems:

   • Description: A complete system that provides hands-on experience with different flow measurement methods.
   • Includes:
     • Flow bench or flow loop with water or air supply
     • Different types of flow meters (orifice plate, rotameter, turbine meter, etc.)
     • Pressure sensors, flow regulators, and data logging systems
     • Instruction manual with practical experiments

2. Flow Rate Testing Station:

   • Description: A station designed for testing and comparing the accuracy of different flow measurement techniques.
   • Includes:
     • Multiple types of flow meters (venturi, rotameter, turbine, etc.)
     • Calibration equipment for flow meters
     • Flow control valves to adjust flow rate
     • Digital displays for real-time data tracking

3. Venturi and Orifice Plate Flow Measurement Setup:

   • Description: An experimental kit demonstrating the principles of Venturi and orifice plate flow measurement.
   • Includes:
     • Venturi tube and orifice plate assembly
     • Differential pressure gauges
     • Flow visualization system for better understanding
     • Data logging system for recording measurements

4. Rotameter Flow Measurement Station:

   • Description: A station that focuses on training with variable area flow meters for small-scale flow measurement.
   • Includes:
     • Set of rotameters for various flow ranges
     • Adjustable flow regulators
     • Pressure sensors and data recording system

5. Coriolis Flow Meter Training Kit:

   • Description: A demonstration kit for Coriolis flow meters used in precise mass flow rate measurements.
   • Includes:
     • Coriolis flow meter with U-tube and sensors
     • Flow rate display and digital output systems
     • Calibration tools for mass flow measurements

6. Ultrasonic Flow Meter Demonstration System:

   • Description: An ultrasonic flow meter setup to demonstrate the working principle of ultrasonic waves for flow measurement.
   • Includes:
     • Ultrasonic transducer kit
     • Signal processor and receiver
     • Calibration system for different fluid types

Key Benefits of Flow Measurement Vocational Training Equipment:

• Hands-on Experience: Allows students to work directly with flow meters and understand their real-world applications.
• Versatility: Covers a wide range of flow measurement techniques, ensuring a comprehensive education.
• Practical Skill Development: Provides a foundation for industries requiring accurate fluid measurement such as water treatment, HVAC, automotive, and oil and gas industries.
• Real-time Data: Enables data logging and analysis, enhancing learning through practical demonstrations and real-world data.

Applications of Flow Measurement in Vocational Training:

• Industry Training: Prepares students for careers in industries requiring fluid dynamics knowledge, including chemical processing, energy, and water management.
• Calibration and Maintenance: Teaches students how to calibrate and maintain flow meters in real-world systems, ensuring accuracy in industrial applications.
• Research and Development: Assists in academic research by providing experimental setups for fluid mechanics and flow measurement studies.
