Product descriptions
Product Features

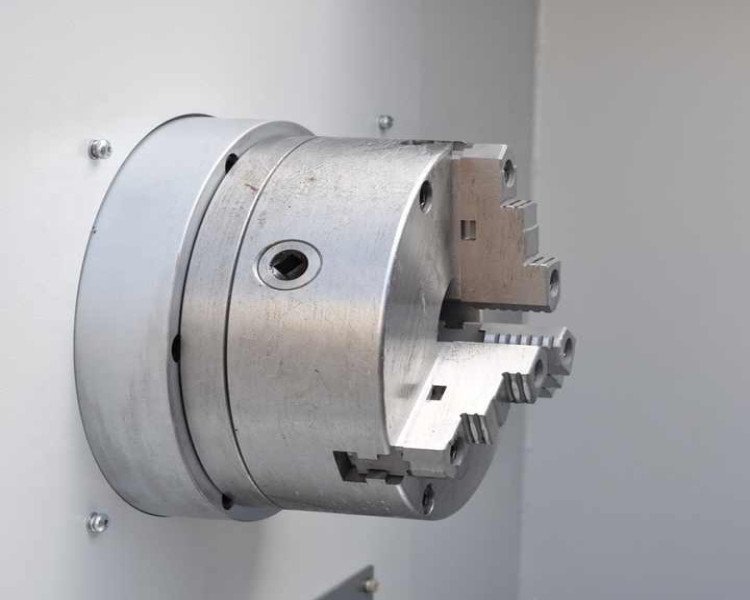

1. High precision bearings are adopted for the spindle to realize high accuracy and load capacity.
2. The machine main drive adopts imported inverter variable speed motor to realize infinitely variable speed.
3. Both X and Z axis rails are equipped with Taiwan linear guide ways to reduce abrasion.
4. Full enclosure with safety switch and door interlock.
5. Rapid feed is realized through a big pitch ball screw.
00:0002:23
PRODUCT SPECIFICATIONS
|
MODELS |
CK6140L |

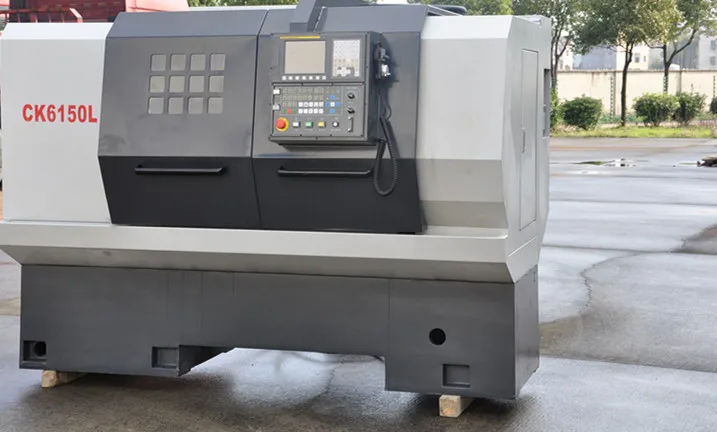

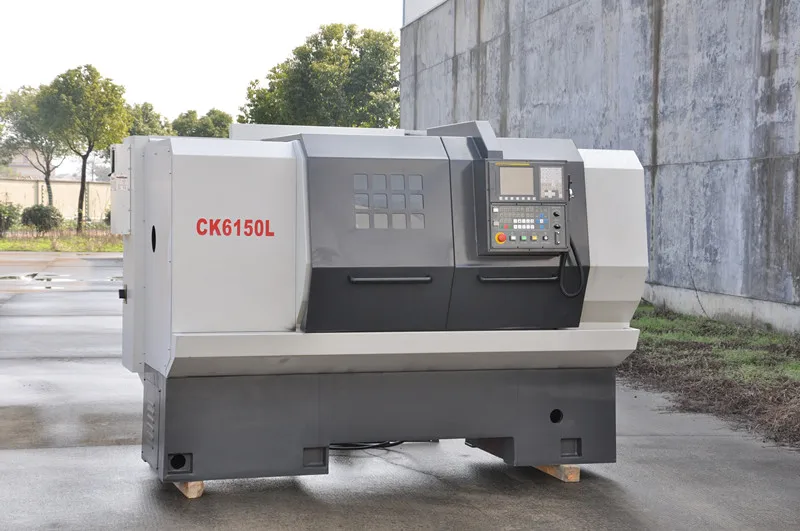

CK6150L |
|
CAPACITY |
|
|
|
Max swing over bed |
Ф400mm |
Ф560mm |
|
Max. cutting dia. for axle parts |
Ф230mm |
Ф310mm |
|
Max. cutting dia. for disc parts (4-way turret) |
Ф400mm |
Ф500mm |
|
Max. cutting dia. for 6-way turret |
Ф250mm |
Ф400mm |
|
Distance between centers |
300mm |
750mm |
|
Max. turning length (4-way turret) |
300mm |
620mm |
|
Max. turning length (6-way turret) |
230mm |
570mm |
|
Spindle nose |
A2-5 |
A2-8 |
|
Spindle bore |
Ф52mm |
Ф80mm |
|
Taper bore of spindle |
M.T.NO.6 |
M.T.NO.7 |
|
Steps of spindle speed (manual) |
Stepless |
Stepless |
|
Range of spindle speed |
0~3000rpm |
50~2200rpm |
|
Rapid feed for axis X |
16m/min |
16m/min |
|
Rapid feed for axis Z |
20m/min |
20m/min |
|
Max. cross travel(X) |
215mm |
320mm |
|
Max. longitudinal travel(Z) |
300mm |
650mm |
|
Min. input |
0.001mm |
0.001mm |
|
Tool post stations |
4-way |
4-way |
|
Tool cross section |
20×20mm |
25×25mm |
|
Round hole cutter holder size |
Ф25mm |
Ф32mm |
|
Tailstock external diameter |
—— |
Ф90mm |
|
Tapper of tailstock sleeve |
—— |
M.T.NO.5 |
|
Max travel of tailstock sleeve |
—— |
250mm |
|
Main motor power |
3.7kw （5.5kw optional） |
7.5/11kw |
|
Coolant pump power |
75w |
90w |
|
Overall dimensions(L×W×H) |
1700×1500×1600mm |
2450×1500×1800mm |
|
Net weight |
1700kg |
2700kg |
