Product descriptions
Overview

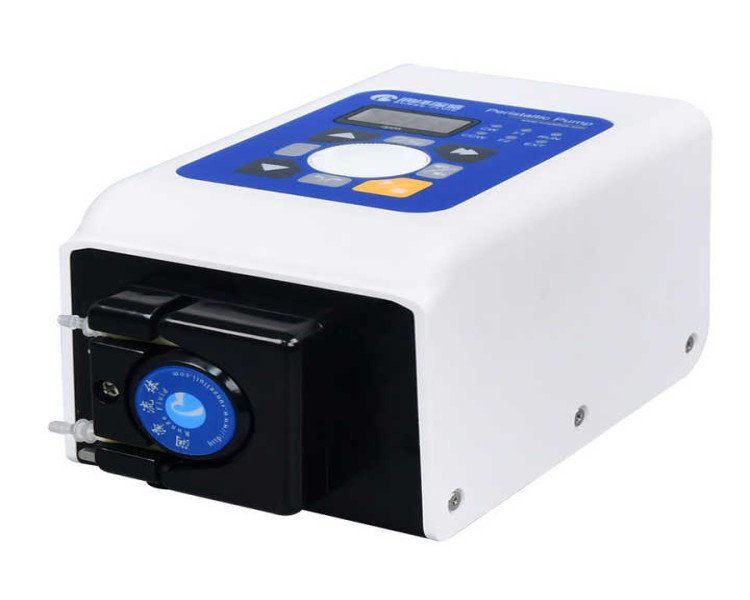

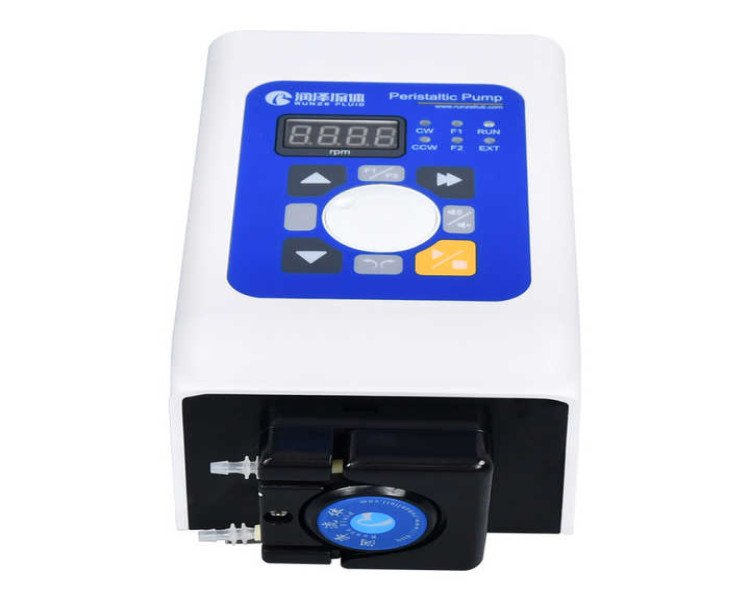

The LM40B peristaltic pump uses a cost-effective processor to control the stepper motor, and uses multiple independent LEDs to display the status (including positive/negative rotation, foot pedal mode F1/F2, motor movement/motor stop, external control trigger, etc.).
Features
* The pump is compact in size, cost effective in price, easy in operation and non-oxidizing in housing
* Support bottle liquid filling and infinite loops(communication control mode)
* Easy Operation: Adjust the speed by keyboard panel or rotary encoder

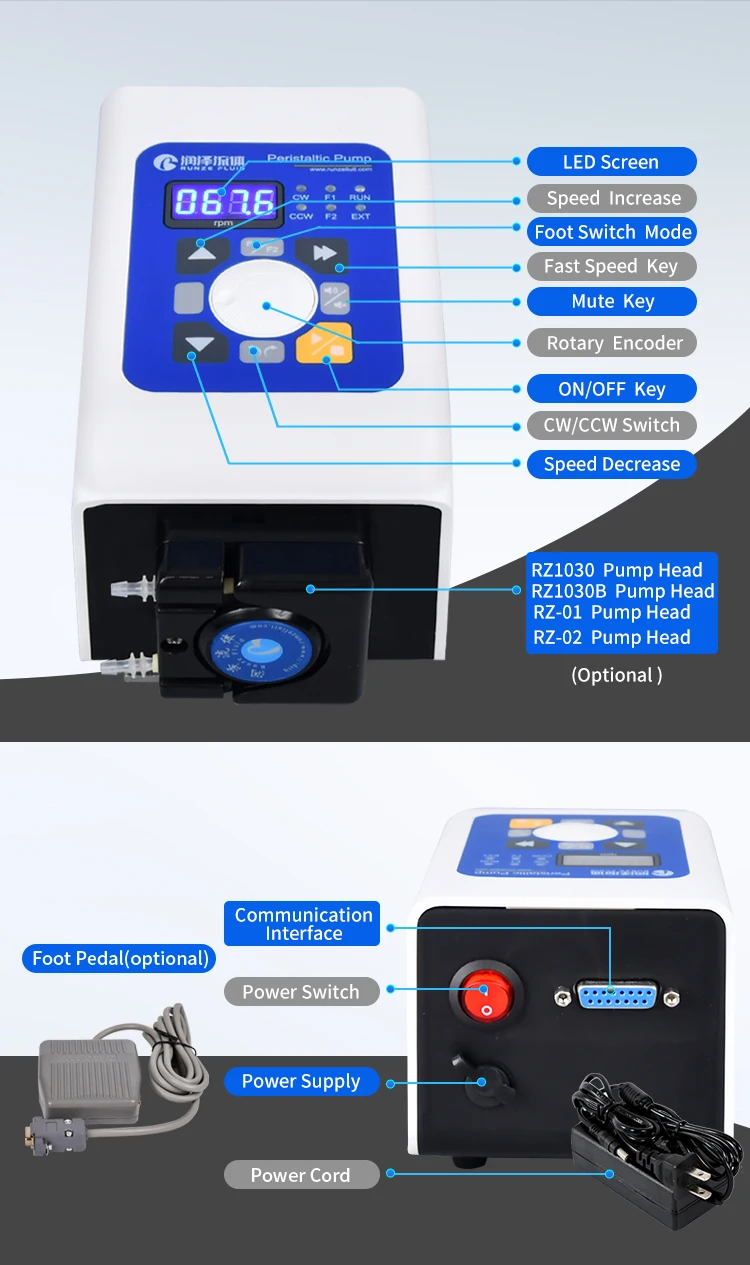

* Intuitive Display: The LED displays the positive/negative rotation, foot switch status, whether the motor is running, whether the external control interface is effective, etc.
* Motor subdivision is adaptive and speed control accuracy can reach ±0.1rpm
* Support Rich Application Scenarios: Keyboard control mode, RS485 communication control mode, Foot pedal control , Current and voltage control
Specification
|
Product name |
LM40 Series Intelligent Peristaltic Pump |
|
Pump head |
RZ1030-4/RZ1030B/RZ-01/RZ-02 |
|
Motor type |
Japan imported stepper motor |
|
Brand name |
RUNZE |
|
Speed accuracy |
±0.1 rpm |
|
Language |
Chinese/English |
|
Roller material |
POM/PPS |
|
Speed range |
0.1-400rpm |
|
Flow rate range |
0.03~152 ml/min |
|
External control |
Foot pedal switch, RS485, Current and Voltage Control |
|
Foot pedal input interface |
Foot pedal switch control start and stop (keyboard control mode only) |
|
External control speed signal input interface |
Support multiple switching control inputs (external control mode only) |
|
External control steering signal input interface |
Support steering switching control inputs (external control mode or |
|
External control start signal input interface |
Support start/stop switch control input(external control mode only） |
|
Fast speed |
One button to make it to fast speed |
|
Power supply mode |
DC24V±10% |
|
Power consumption |
20W |
|
Working temperature |
0-40℃ |
|
Working humidity |
Relative humidity＜ 80% |
|
Protection grade |
IP31 |
|
Ne weight |
0.9kg(without pump head) |
|
Dimension (L*W*H) |
180.1(length)×107.4(width)×101.5(height) (mm) |
