Product Description

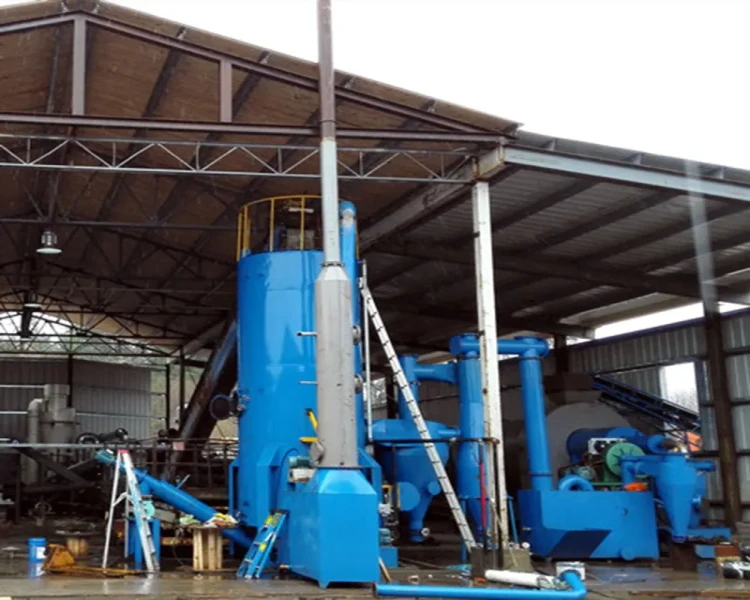

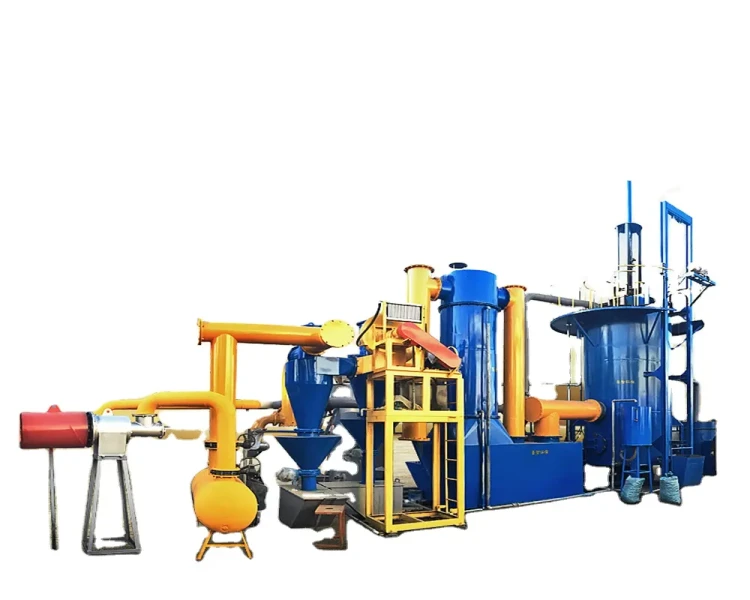

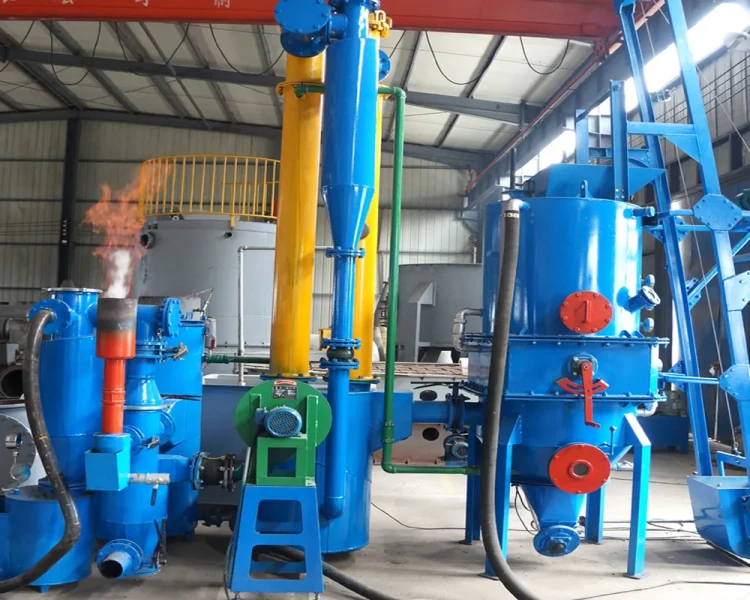

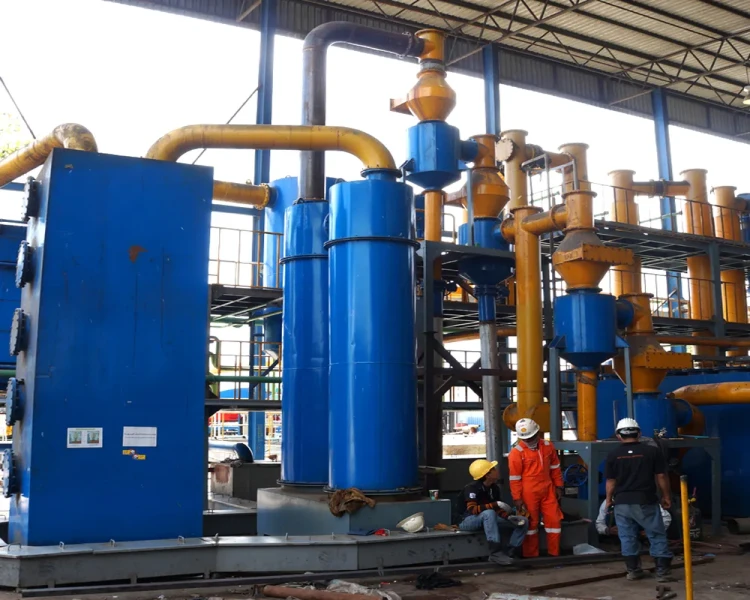

Biomass Gasification Power Plant:

capacity from 200kw to 3000kw, 1kg woody biomass generate 1kw electricity, 1kw woody biomass produce 2-3m3/h syngas, syngas heat value 1100-1500kcal/m3.

Biomass Gasification System Carbon And Gas Co-Production

Principle Of Pyrolysis Gasification（Biomass Gasification Power Plant）

Biomass gasification refers to the thermochemical process of converting biomass fuels into flammable gases. In biomass
gasification process, water vapor, free oxygen, or bound oxygen reacts with the carbon in the fuel to form a combustible gas.
Biomass gasification process is more complex and the gasification reaction conditions are also different. However, all the
gasification reaction processes basically include the processes of biomass drying, pyrolysis, oxidation and reduction.

The Haiqi gasification power generation process includes three aspects. One is biomass gasification, which converts solid biomass into gaseous fuel; the other is gas purification. The gasified gas contains certain impurities, including ash, coke, and tar. ,The impurities need to be removed through the purification system to ensure the normal operation of gas-fired power generation equipment; the third is gas-fired power generation, which uses gas turbines or gas internal combustion engines to generate power.

In some processes of biomass gasification plant, in order to improve power generation efficiency, waste heat boilers and steam turbines can be added to the power generation process.

Flow Chart Of Comprehensive Utilization Of Biomass Gasification Power Generation

Feedstock Of Biomass Gasification Power Plant

Applicable raw materials: a wide range of raw materials, such as straw, wood chips, rice husk, palm shell, bagasse and other agricultural and forestry wastes, particle size: 30-50mm, water content: less than 20%

Biomass Gasification Power Generation System Generator Set

Recommended use: 8300 or 6300 biomass gas generator set, the advantages of this type of generator set are large cylinder bore, low speed, high torque, suitable for low calorific value gas.
Model selection: single machine can be selected below 500kw/h power generation: more than 500kw/h is recommended to use multiple machines in parallel.

Advantages Of Biomass Gasification Power Plant

●Biomass gasification power generation technology is a unique way different from other renewable energy sources in the utilization of biomass energy. Biomass gasification plant has three characteristics:

●First, biomass gasification power generation technology has sufficient flexibility. Since biomass gasification power generation can use internal combustion engines, gas turbines, or even combined with waste heat boilers and steam power generation systems.

●Second, biomass gasification power generation technology has good cleanliness. Biomass itself is a renewable energy source, which can effectively reduce the emission of CO2, SO2 and other harmful gases. The gasification process generally has a low temperature (about 700-900oC), and the generation of NOx is very small, so biomass gasification plant can effectively control the emission of NOx;

●The third is economy. The flexibility of biomass gasification power generation technology can ensure that the technology is effective and economical on a small scale. At the same time, the gas-fired power generation process is simple and the equipment is compact. It also makes the biomass gasification power generation technology more renewable than other renewables. Energy power generation technology investment is smaller, so in general, biomass gasification power generation technology is the most economical power generation technology of all renewable energy technologies, and the comprehensive power generation cost is close to the power generation level of small conventional energy sources.

By Product Of Biochar：

The biochar is a by-product from biomass pyrolysis gasification, it can be used as activated carbon, barbecue carbon, carbon-based fertilizer to soil, animal feed additives,etc.

The Advantages Of Biochar To Soil:


●Water absorption and moisture retention, one ton of carbon absorbs 3 tons of water
●Adsorption and solidification of heavy metals
●Biochar can increase the low temperature by 1-3 degrees
●Biochar can loosen the soil and increase the air permeability of the soil
●Nitrogen fixation and fertilizer preservation, extend and increase the fertility of carbon-based carrier fertilizer
●Biochar can Inhibiting pests, preventing diseases and disasters
●Each ton of straw can produce 300-350kg black carbon
●Carbonaceous solids are called biological black carbon, which is a general term for mixtures under organic carbon, mainly cellulose, hydroxyl, acid organic acid derivatives, furans, pyrans, anhydrosugars, phenols, paraffins and olefinic hydrocarbons Complex organic carbon mixtures such as derivatives.

Biomass Gasification And Polygeneration Recycling To Build A Smart Town
