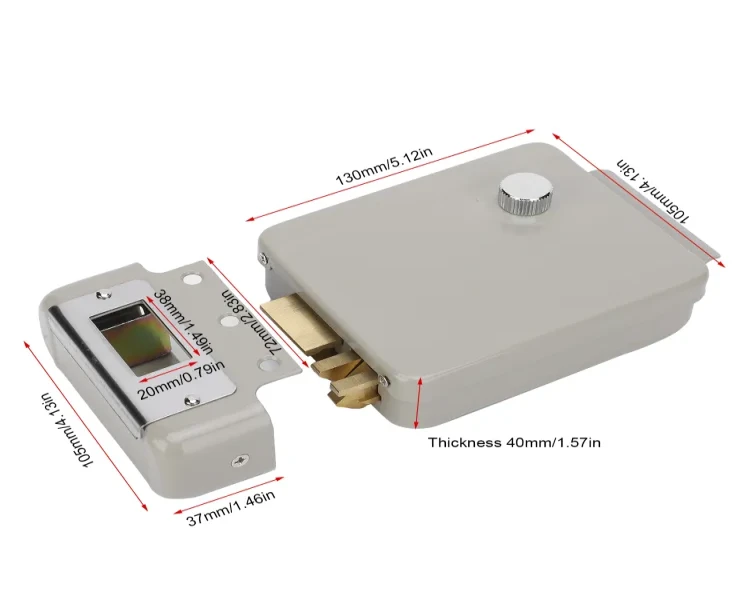

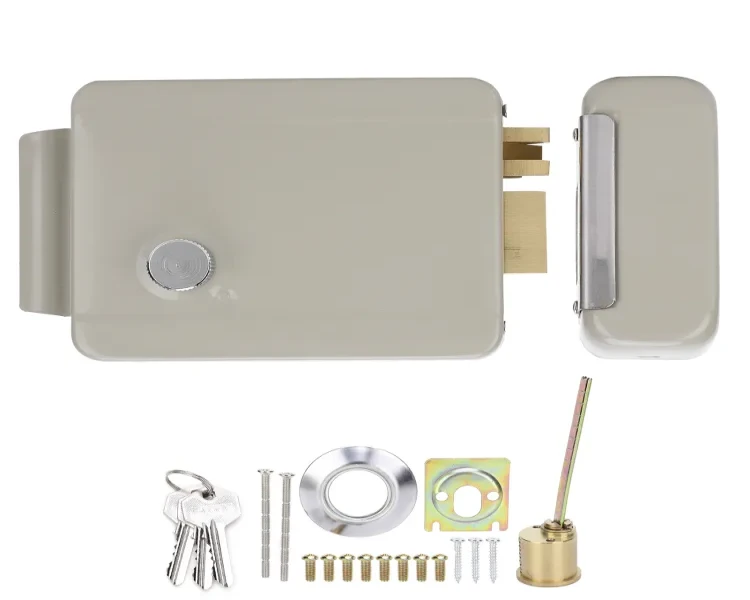

Product details of Electric Door Lock 2 Wire Electromagnetic Locking Device Access Control System 9‑12V Right Hand Opening
- 12V voltage electric control lock, features super high anti‑theft performance, safe to use.
- The lock adopts electric control to open, indoor turn the knob to unlock, outdoor key to unlock.
- Super sensitive response ability, easy to lock and unlock, useful part for access control system.
- Firm and reliable lock body, internal mechanical structure for low failure rate.
- Easy to install, wide application, suitable for all kinds of iron doors and wooden doors.
Specification:
Item Type: Electric Control Lock
Material: Powdered Iron
Installation Method: Right Inward Opening Installation

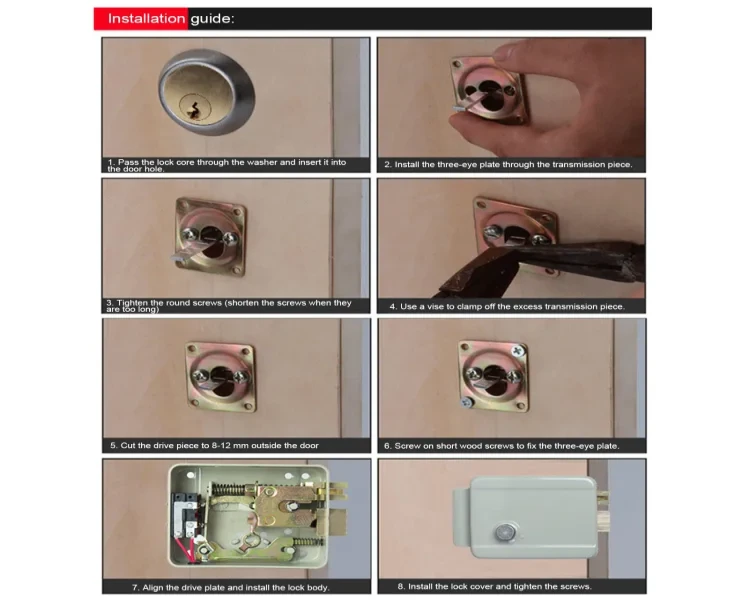

Instructions:
1. Install the lock with the equipped screws. Generally, it is required to fasten the lock body, lock head and door buckle to the door edge, door frame, the distance between the tongue surface of the lock body and the tongue surface of the buckle is about 5 mm/0.2in.
2. Observe whether the weight of the door and the door closer (if equipped) are ideal.
If the door is noisy when closed or unlocked, use a No. 12 wrench or pliers to turn the hexagonal screw angle. Repeatedly adjust the load spring until it is tight and balanced when opening and closing the door.
3. When the hook tongue is reversed, the inner unlocking can be changed to the outer unlocking, and the installation method is the same.
4. Connect the lead wires at both ends of the lock to 9-12V and DC power supply, power> 12W. Then press the unlocking control switch, just press for 1 second, the lock will automatically open.
