Lorem ipsum dolor sit amet consectetur adipisicing elit. Minima quam aperiam ullam.
(Contact: +8801792223444 for price)
Product descriptions
|
Applicable yarn |
Cotton yarn O/E 12-40 R/S 30-45 |
|
Thread (inch) |
Warp density 10-35EPI Weft density 6-30PPI |
|
Reed width |
210cm 230cm 280cm 340cm (optional) |
|
Shedding motion |
Tapped shedding( plain) |
|
Heald frame |
2pcs (it is enough for gauze fabric weaving) |
|
Color |
1 or 2 (advise 2 ) |
|
Let-off |
Mechanical/electronic |
|
Take-up |
Mechanical/electronic |
|
Warp beam |
Dia.800mm |
|
Take-up |
Wind on loom(max roller dia.550mm) wind on batching motion(max.roller dia.1000mm) |
|
Main configuration |
Machine weight:2000kg-2500kg(heavy) Nozzle:Jiete brand Magnetive valve:SMC,Japan Electronic control system:Baina,China Bearing:NSK or Nachi,Japan |
|
Output per hour |
E. g cotton yarn Ne40xNe40 thread 26x18 grey gauze width:95cm Machine working width 210cm,speed 620R.P. efficiency 95% Machine output per day: 95cm x 50m x 2( two lane)=95cm x 100m |

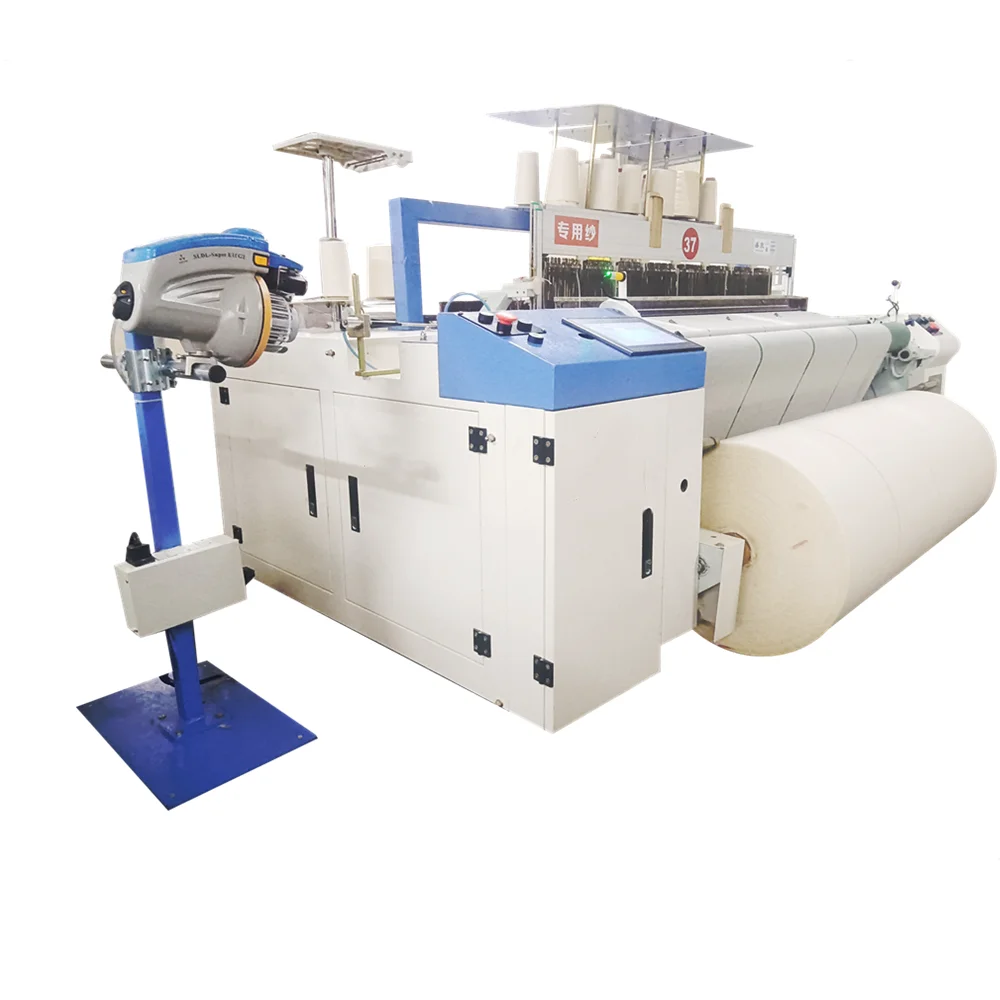

New outlook for air jet weaving machine

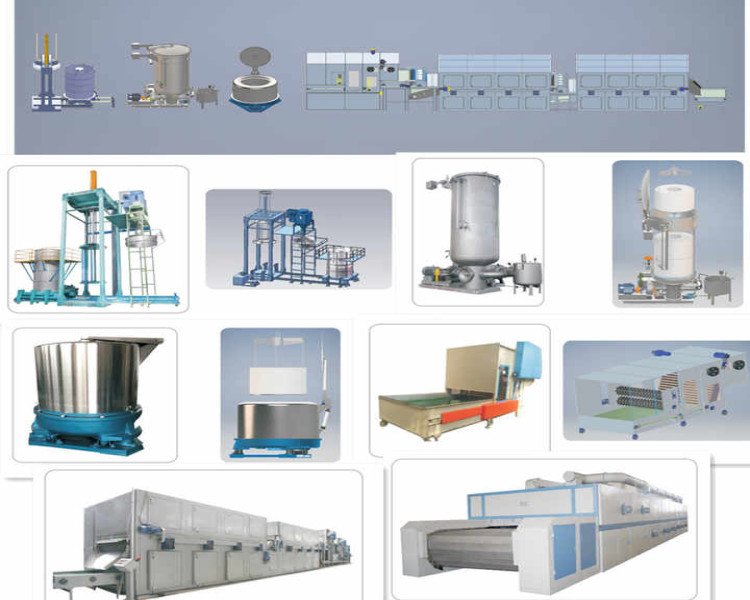

High speed gauze production line include
cotton warping machine,gauze weaving machine,gauze bleaching machine,gauze cutting machine,gauze rolling machine,gauze folding machine and gauze packing machine
More details pls contact Tina 86 I85 6045 934I
We supply the whole production line for customer.whole production line solution is available for customer

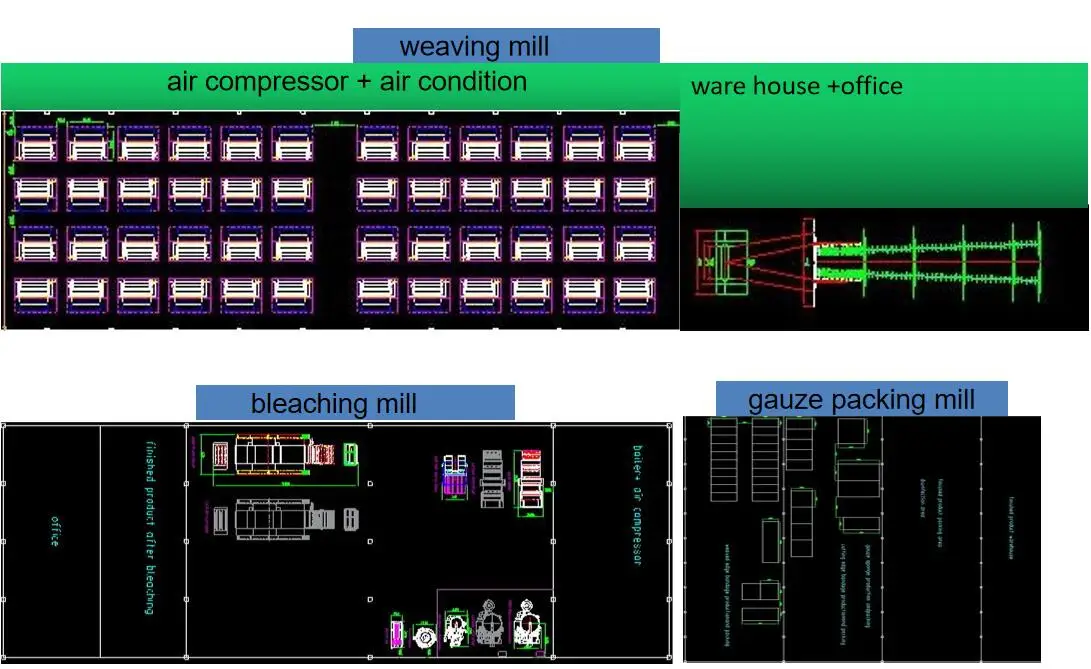

gauze weaving production line (design for customer)
