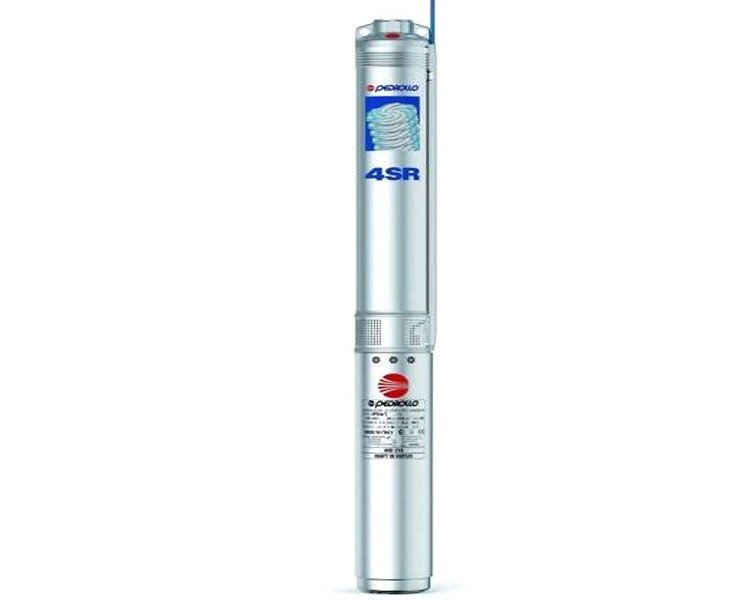

Components & Materials:
Pump external casing: Stainless Steel AISI 304
Delivery Casing: Cast-Cu ASTM C85500
Suction Lantern: Cast-Cu ASTM C85500
Diffuser: Plastic PC
Impeller: Plastic POM
Shaft: Stainless Steel AISI 304
Shaft Coupling: Stainless Steel AISI 304
Wear Ring: Stainless Steel AISI 304
Motor External Casing: Stainless Steel AISI 304
Mechanical Seal: Graphite-Ceramic/TC
Bearing: NSK brand
Seal Lubricant Oil: Oil for food machinery and pharmaceutic use.
Motor connection
SINGLE PHASE
Motor power (HP)
1.5
Absorption at 230V (A)
8.1
Delivery port
1 "1/4
Body Pump
AISI 304 stainless steel
Impeller
Delrin
Number of impellers
12
Motor shaft
Stainless steel EN 10088-3 1.4104
Pump shaft
AISI 304 stainless steel
Check valve
Yes
Degree of protection
IP 68
Flow rate min. (l./min.)
20
Max flow (l./min.)
100
Min head (m.)
33.5
Max head (m.)
96
Cable length (m)
2
Employments
water supply, pressurization systems, irrigation
Liquid temperature max. (° C)
35
Height (cm)
77.4
Outside diameter (cm)
9.8
Weight kg)
16.5
