(Contact: +8801792223444 for price)
Product Details

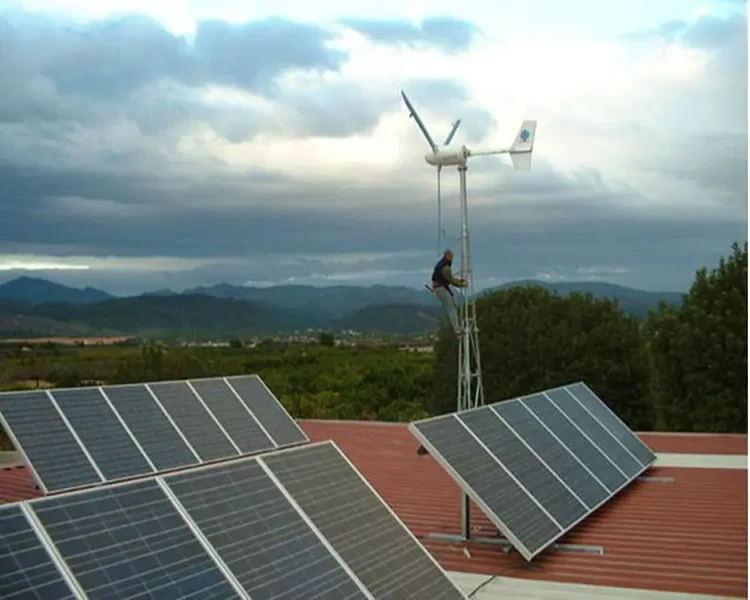

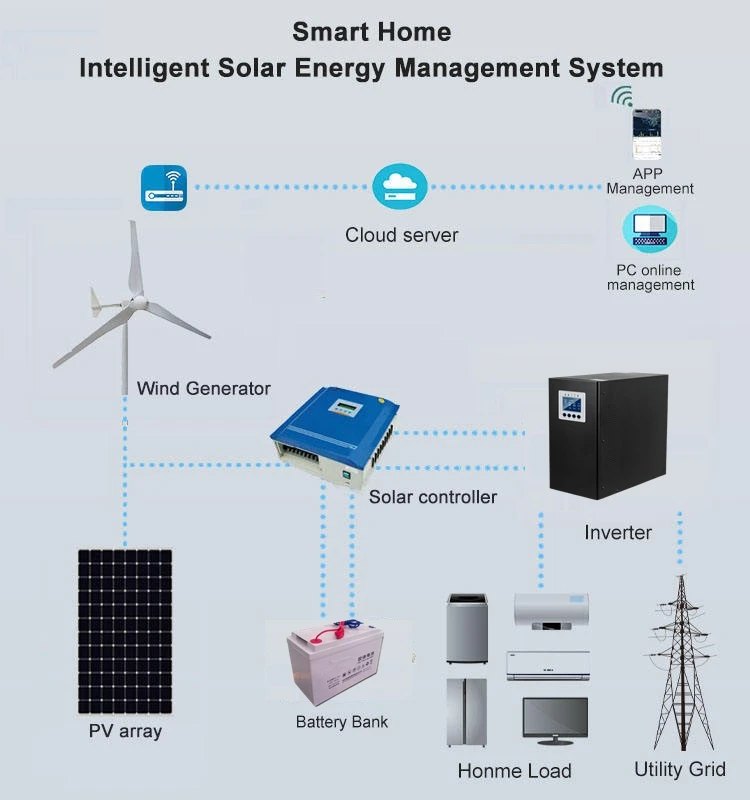

Wind and solar hybrid power generation system: Utilize the complementarity of wind and solar energy. It has the characteristics of day and night complementation and seasonal complementarity, and can obtain stable output for 24 hours without external power supply. The system is stable, reliable and cost-effective.
1. Small vibration and tiny friction, stable rotation in higher speed
2. Streamlined wind turbine body and blade outline design
3. High quality bearing, free to maintenance; 4. Anti-twist device, generator can whirl in each direction
5. Supply matched controller/inverter(optional), make solar and wind energy system more stable
6. On windy and sunny days, both solar and wind generate power.
Technical parameter
|
Item |
Model |
Quantity |
|
Solar Panel |
Mono solar panel(poly optional) |
4 pcs |
|
Wind turbine with tower |
Rated power: 3000W Rated voltage: 48V Start wind speed:3.0m/s Rated wind speed:10m/s 5 Year quality warranty 6M instal tower |
1 piece |
|
Wind Charge controller |
Rated wind power:3KW Battery voltage:48VDC Dump load:4.5KW |
1 piece |
|
Off grid inverter |
Low frequency type With huge transformer inside Can run with heavy load Pure sine wave 220vac output Rated power：3KW |
1 piece |
|
Solar Gel battery |
12V 250AH 520*268*220mm |
4 pcs |
|
AC cable |
Battery cable & PV cable |
100 m |
|
DC cable |
Battery to controller, inverter to battery |
40 m |
