Lorem ipsum dolor sit amet consectetur adipisicing elit. Minima quam aperiam ullam.
(Contact: +8801792223444 for price)
Product Description
|
Rated power |
12kW-3000kw |
|
Rated speed |
300rpm |
|
Rated voltage |
220VAC |
|
Frequency |
60Hz |
|
Numbers of Poles |
24 |
|
Insulation Class: |
H |
|
Protection Class |
IP54 IP55 |
|
Efficiency |
93% |
|
Cooling Method |
Natural cooled |
|
Ambient temperature |
-25~45℃ |
|
Recommended altitude |
≤ 1000m |
|
Bearings |
SKF Ball Bearings |
|
Winding material |
100% Copper |
|
Winding temperature level |
180℃ |
|
Stator Impregnation type |
Vacuum Pressure Impregnation (VPI) |
|
Normal working temperature |
90℃ |
|
Max working temperature |
130℃ |
|
Installation |
Horizontal |

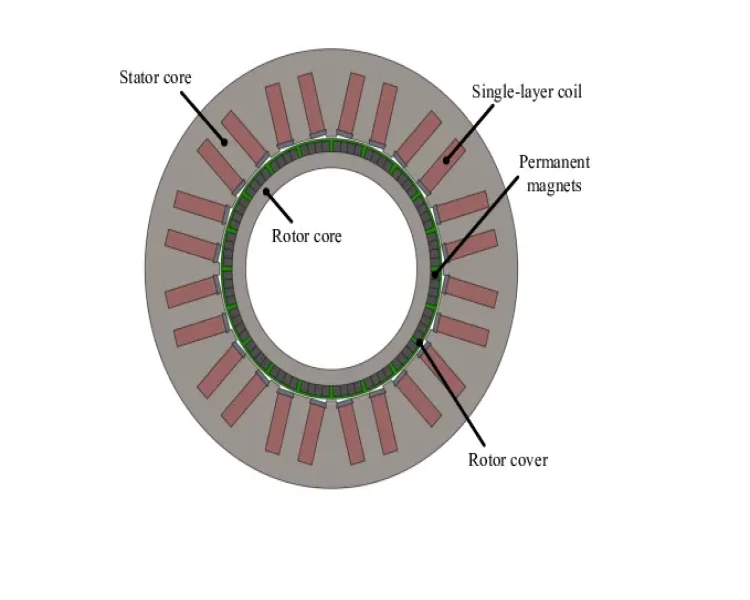

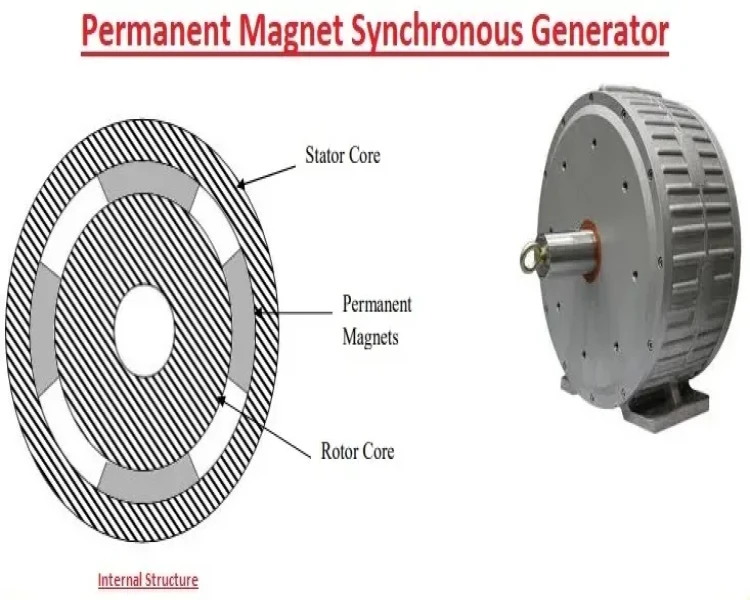

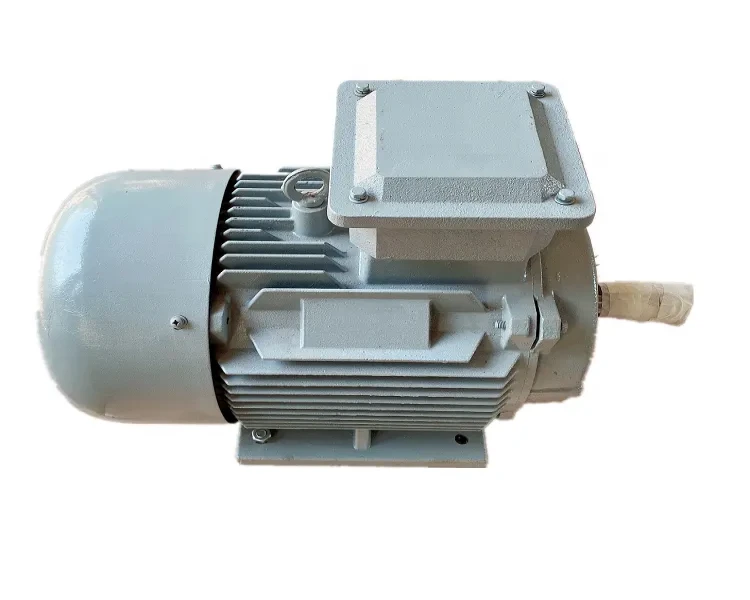

Details Images
Main Features
① The generator has many poles,which improve the frequency and efficiency,saving the cost of rectifiers and inverters. ② Finite Element Analysis is used when designing the generator,compact structure. Low startup torque,solves the problem of small wind startup,improving the wind energy utilization.0 ③ Leave out the gear increaser,improve the reliability and efficiency of the generator,lower the amount of maintenance. ④ H class insulation,vacuum pressure impregnation. ⑤ Have many structures such as vertical axis,horizontal axis,internal rotor,external rotor,plate type. ⑥ Strong rotors ,the generator could achieve high speed. ⑦ Small size ,light weight,high energy density,suitable for special situations. ⑧ Run efficiency throughout the whole speed range,high efficient. ⑨ Use imported high-speed oil-contained bearings,maintance free,high reliablity.
⑩ The parameters like voltage,speed,power can be customized.The shape can be changed.Spline shaft,biaxial extension,flange can be used.

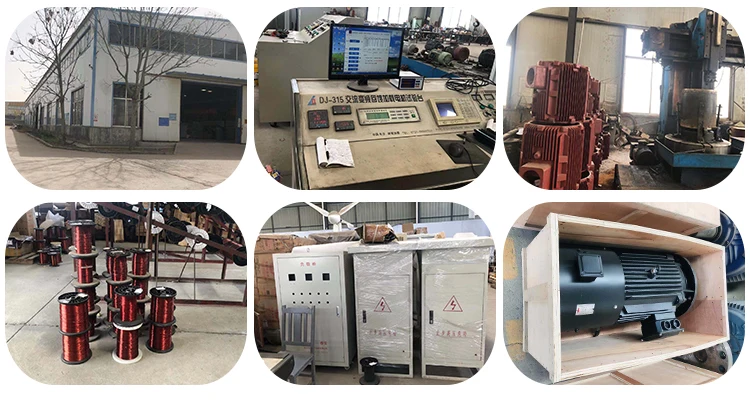

Factory Show
